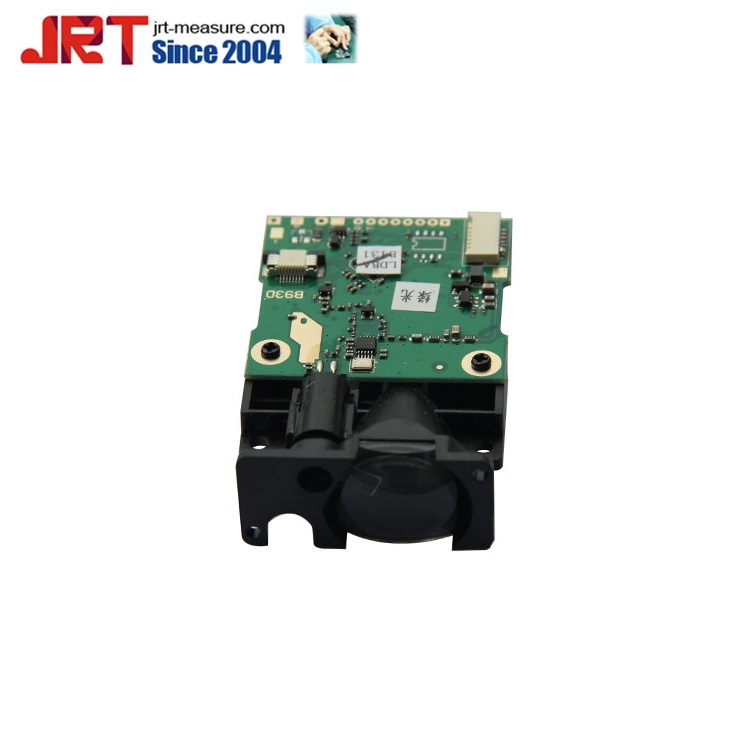

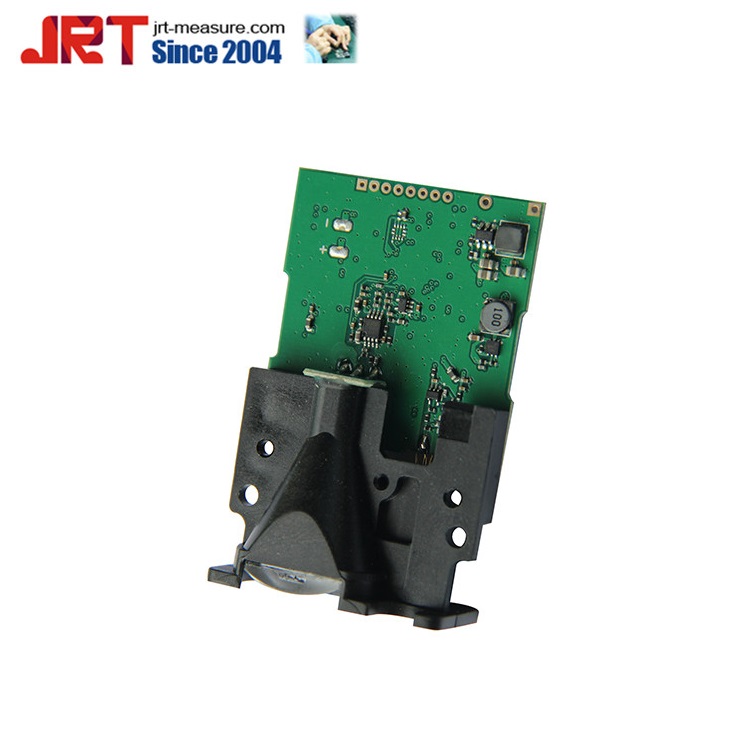

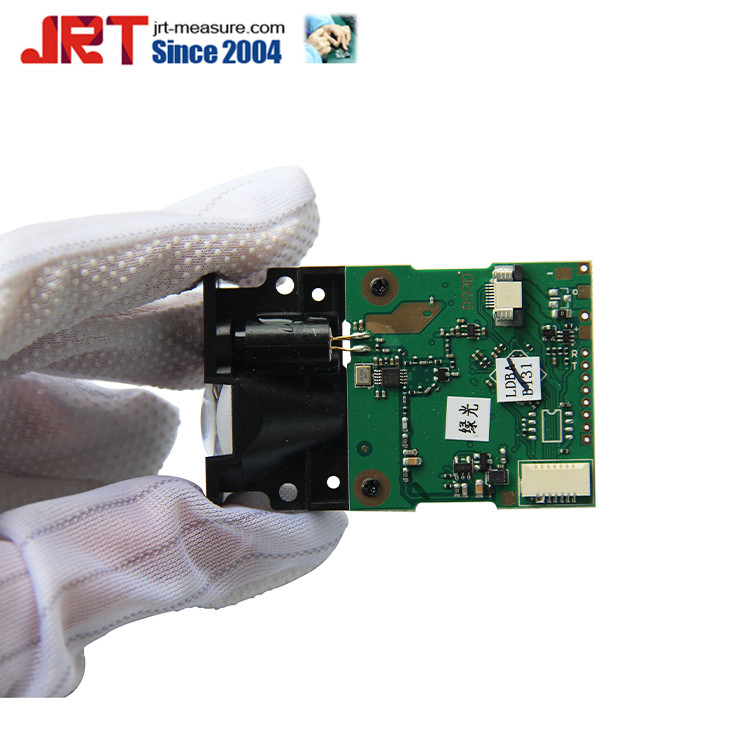

60m RxD TxD Green Laser Distance Sensors 520nm
JRT laser measurement sensors can be widely used in industrial measurement, UAV, the materials height in production line ... Especially, the green series uav lidar sensor, which can measure for long ranges 60m.
Key-Features:
>1. Green laser: 520nm good for outdoor using
>2. Long range: up to 60m
>3. Interface: ttl or usb cable options
Feedbacks:
Customer to JRT:
The sensor is awesome and maybe it would make sense to sell it to the maker community.
Specifications of Green Laser Distance Module:
Accuracy: ±3 mm
Measuring Unit: mm
Applications support connect to your Arduino/Raspberry Pi etc.
Measuring Range 0.03-60m
Laser Class Class II
Laser Type 520nm, <1mW

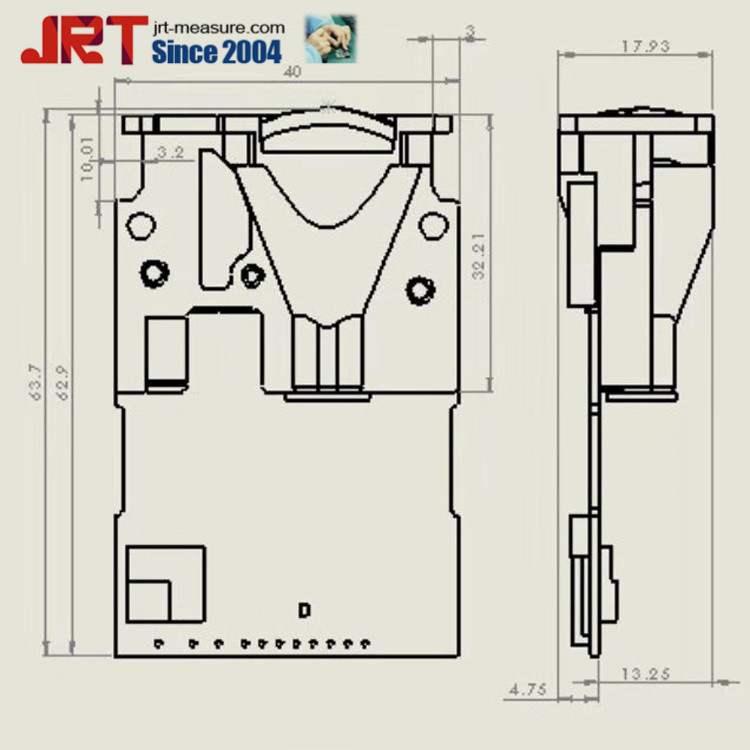

Size 64*40*18mm
Weight About 13g
Voltage DC2.0~3.3V
Electrical Level TTL/CMOS
Frequency 3 Hz
Operating Temperature 0-40 ℃ (32-104 ℉ )
Storage Temperature -25~60 ℃ (-13~140 ℉)…
