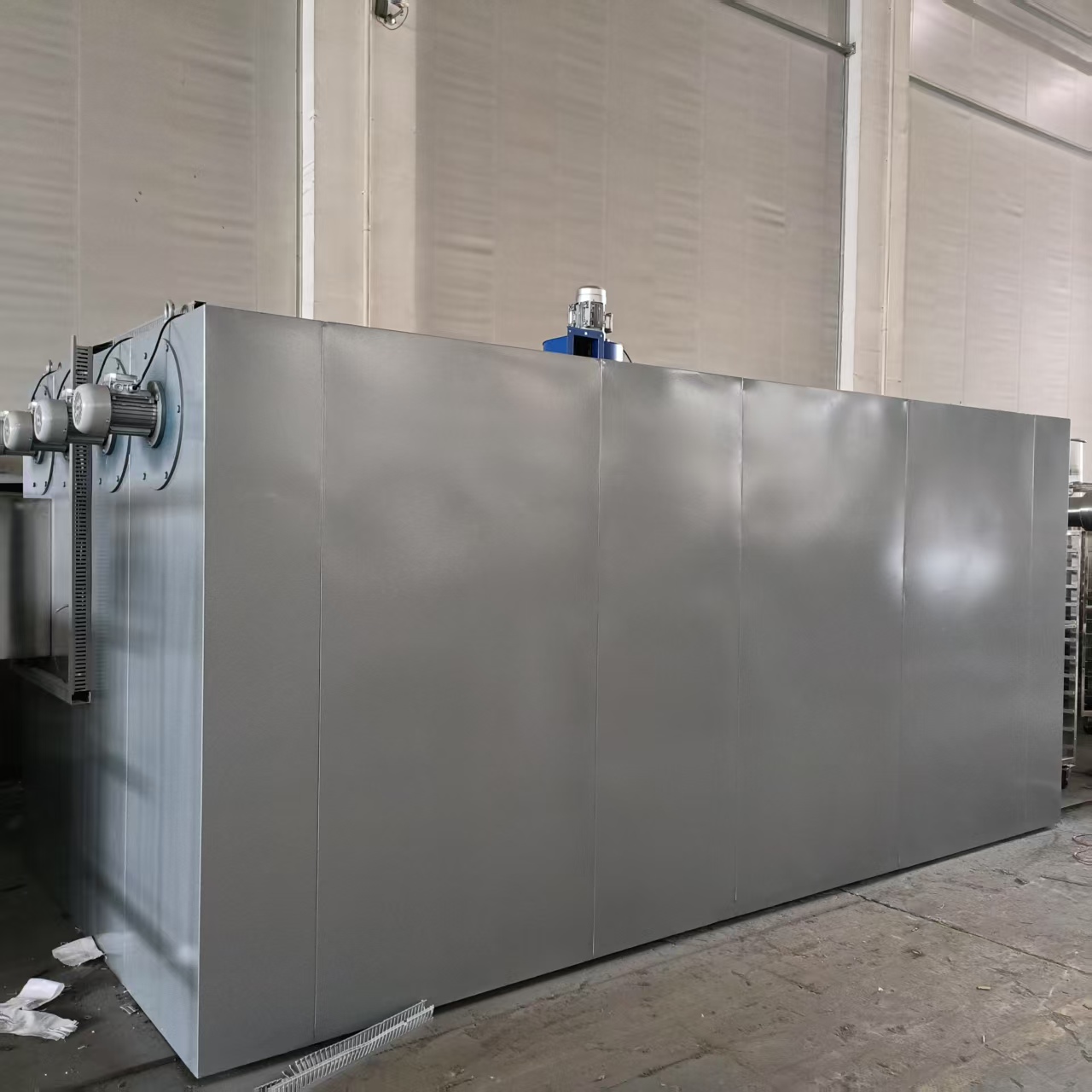

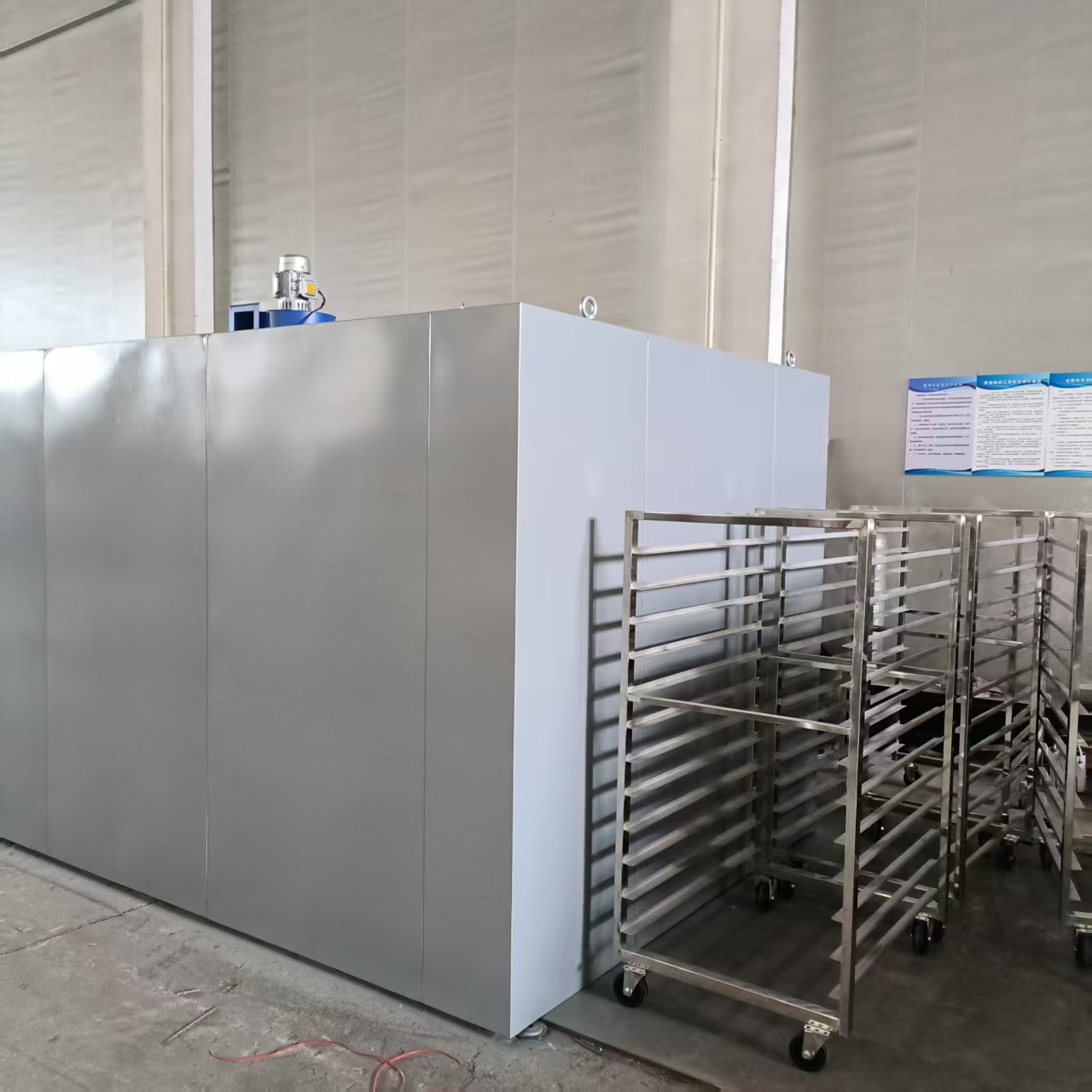

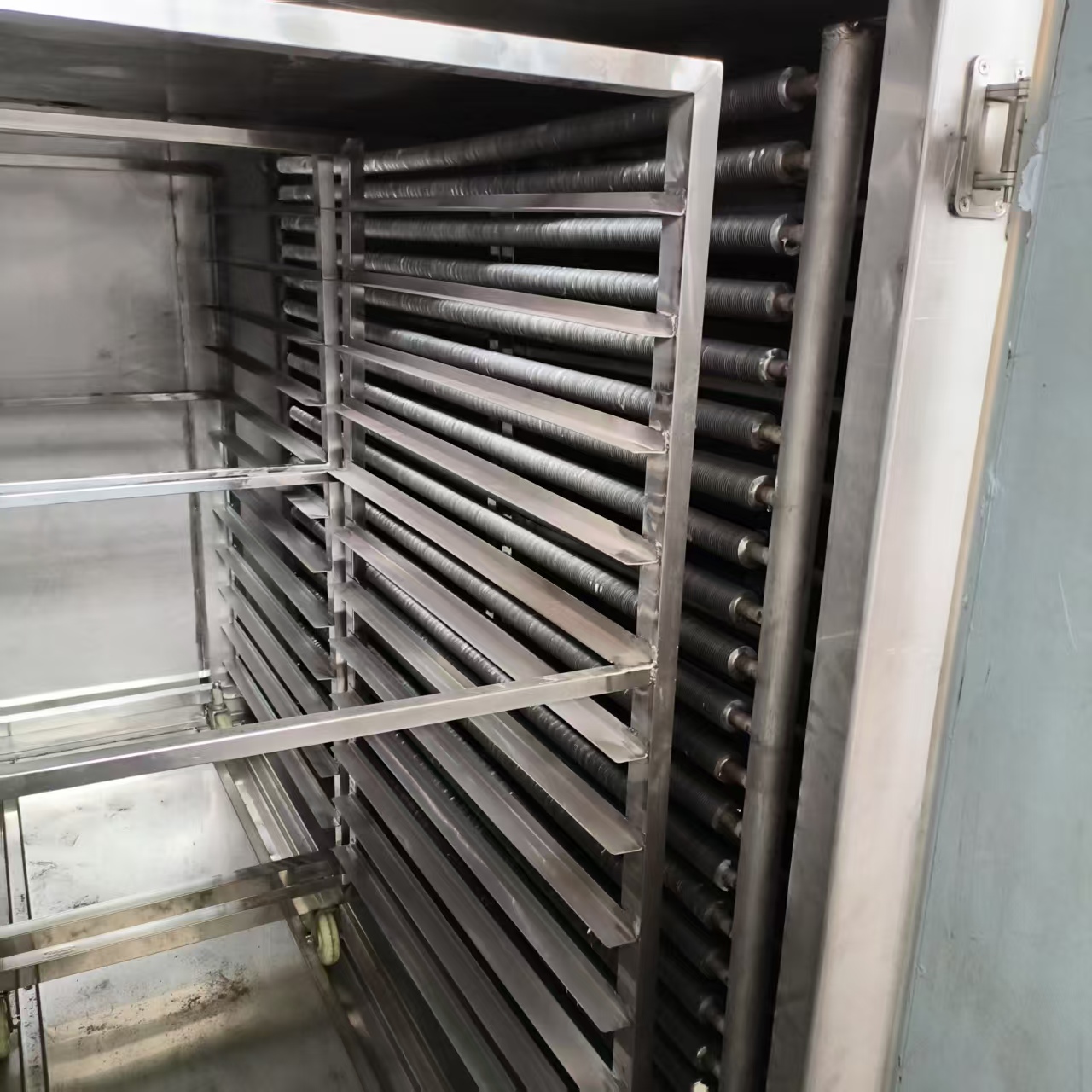

The machine is made with stainless steel, mainly consisting of heat source, blower, tray and shelf. With steam or electricity as the heat source, the hot air heated by exchanger will circularly flow into inner oven by blower and meanwhile take away the moisture volatilized from materials to finally dry the materials.  Optional dehumidification fan, high efficiency filter, humidity reading instrument, printing recorder, HMI and PLC control system.     型号Model RXH-0 RXH-I RXH-Ⅱ RXH-Ⅲ RXH-IV 产量Capacity 60kg 120kg 240kg 360kg 480kg 电加热功率Heat Power 9KW 15KW 30 KW 45 KW 63KW 风机功率Fan Power 0.55kw 0.55kw 1.1kw 1.65kw 2.2kw 蒸汽消耗Steam Consumption 10kg/h 20kg/h 45kg/h 71kg/h 80kg/h 散热面积Radiation Area 5㎡ 20㎡ 40㎡ 80㎡ 100㎡ 风量Blast 3450m³/h 3450 m³/h 6900 m³/h 10350 m³/h 13800 m³/h 温差Temperature Deviation…
